Old Maid's Puzzle barn quilt pattern

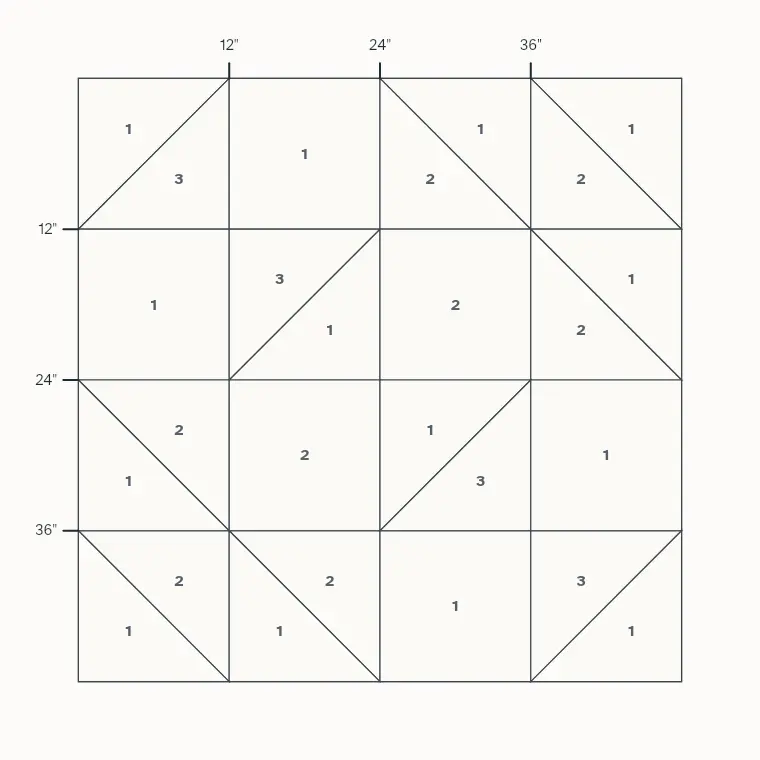

The Old Maid's Puzzle barn quilt is painted on a 4 × 4 grid. On a 4 × 4 ft board each grid square is 12", and on an 8 × 8 ft board 24". It has 26 shapes in 3 colors.
Two large triangles built from smaller ones, with accent triangles between them, on a four-by-four grid.
By Editorial Staff
Measurements for 2, 4 and 8 ft boards
| Board | Grid square | Marks across the top and bottom | Marks down the sides |
|---|---|---|---|
| 2 × 2 ft | 6" | 6", 12", 18" | 6", 12", 18" |
| 4 × 4 ft | 12" | 12", 24", 36" | 12", 24", 36" |
| 8 × 8 ft | 24" | 24", 48", 72" | 24", 48", 72" |
Each mark is measured from the top left corner, rounded to the nearest ⅛". Mark both opposite edges, then join the marks with a straightedge and a sharp pencil.
Paint for the Old Maid's Puzzle barn quilt
Two coats of exterior latex on the front, at 100 square feet a quart for each coat (labels say 300 to 400 square feet a gallon). Reds and yellows often need a third coat to cover evenly, so buy the next size up for those. Exterior paint starts at a quart, so on a 2 × 2 ft board 8 oz bottles of outdoor acrylic craft paint go further; what is left is for touch-ups.
| Color | Share | 2 × 2 ft | 4 × 4 ft | 8 × 8 ft |
|---|---|---|---|---|
| 1. White | 56% | 1 quart (2 oz) | 1 quart (6 oz) | 1 quart (24 oz) |
| 2. Hunter green | 31% | 1 quart (1 oz) | 1 quart (4 oz) | 1 quart (13 oz) |
| 3. Barn red | 12% | 1 quart (1 oz) | 1 quart (2 oz) | 1 quart (6 oz) |
| Exterior primer | Front, back, edges | 1 quart (3 oz) | 1 quart (11 oz) | 2 quarts (42 oz) |
Ounces are what the paint takes; the size is what to buy.
Paint the lightest color first: white, then hunter green, then barn red. A darker color covers a lighter one that creeps under the tape, but not the other way round. The full method, from priming the board to hanging it, is in how to make a barn quilt.
The Old Maid's Puzzle as a fabric quilt
The Old Maid's Puzzle quilt block page has the cutting for four block sizes and the piecing steps.
