Log Cabin barn quilt pattern
The Log Cabin barn quilt has 18 shapes in 3 colors, laid out from marks along the edges of the board.

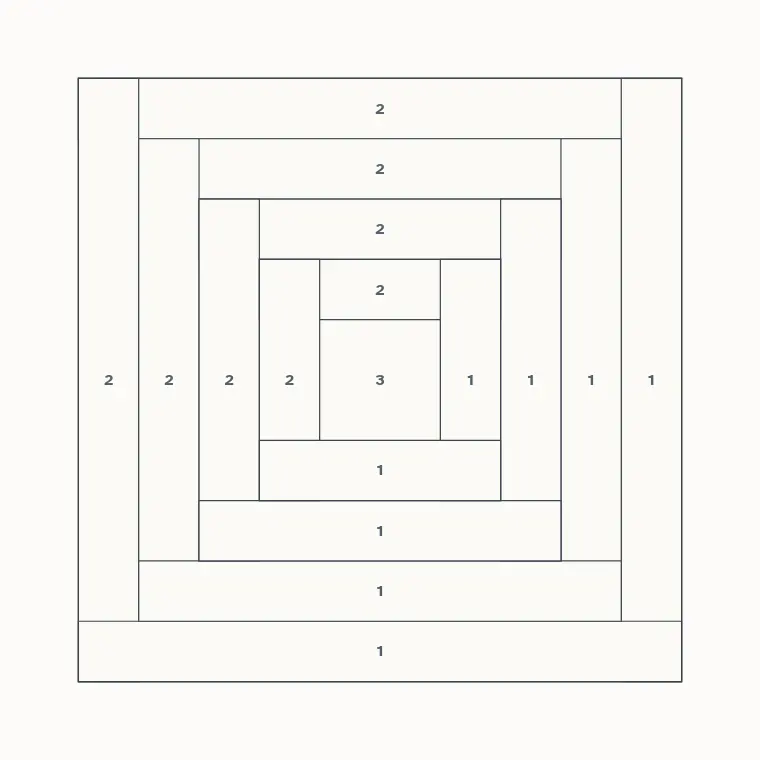

Four rounds of logs around a center square, light on two sides and dark on the other two. Each log is a tenth of the board wide: 4.8" on a 4 × 4 board.
By Editorial Staff
Measurements for 2, 4 and 8 ft boards
| Board | Marks across the top and bottom | Marks down the sides |
|---|---|---|
| 2 × 2 ft | 2⅜", 4¾", 7¼", 9⅝", 14⅜", 16¾", 19¼", 21⅝" | 2⅜", 4¾", 7¼", 9⅝", 14⅜", 16¾", 19¼", 21⅝" |
| 4 × 4 ft | 4¾", 9⅝", 14⅜", 19¼", 28¾", 33⅝", 38⅜", 43¼" | 4¾", 9⅝", 14⅜", 19¼", 28¾", 33⅝", 38⅜", 43¼" |
| 8 × 8 ft | 9⅝", 19¼", 28¾", 38⅜", 57⅝", 67¼", 76¾", 86⅜" | 9⅝", 19¼", 28¾", 38⅜", 57⅝", 67¼", 76¾", 86⅜" |
Each mark is measured from the top left corner, rounded to the nearest ⅛". Mark both opposite edges, then join the marks with a straightedge and a sharp pencil.
Paint for the Log Cabin barn quilt
Two coats of exterior latex on the front, at 100 square feet a quart for each coat (labels say 300 to 400 square feet a gallon). Reds and yellows often need a third coat to cover evenly, so buy the next size up for those. Exterior paint starts at a quart, so on a 2 × 2 ft board 8 oz bottles of outdoor acrylic craft paint go further; what is left is for touch-ups.
| Color | Share | 2 × 2 ft | 4 × 4 ft | 8 × 8 ft |
|---|---|---|---|---|
| 1. Barn red | 52% | 1 quart (2 oz) | 1 quart (6 oz) | 1 quart (22 oz) |
| 2. Cream | 44% | 1 quart (2 oz) | 1 quart (5 oz) | 1 quart (19 oz) |
| 3. Harvest gold | 4% | 1 quart (1 oz) | 1 quart (1 oz) | 1 quart (2 oz) |
| Exterior primer | Front, back, edges | 1 quart (3 oz) | 1 quart (11 oz) | 2 quarts (42 oz) |
Ounces are what the paint takes; the size is what to buy.
Paint the lightest color first: cream, then harvest gold, then barn red. A darker color covers a lighter one that creeps under the tape, but not the other way round. The full method, from priming the board to hanging it, is in how to make a barn quilt.
The Log Cabin as a fabric quilt
The Log Cabin quilt block page has the cutting for four block sizes and the piecing steps. Quilts made with it: Log Cabin, Barn Raising Log Cabin, Straight Furrows Log Cabin, Jelly Roll Log Cabin.
